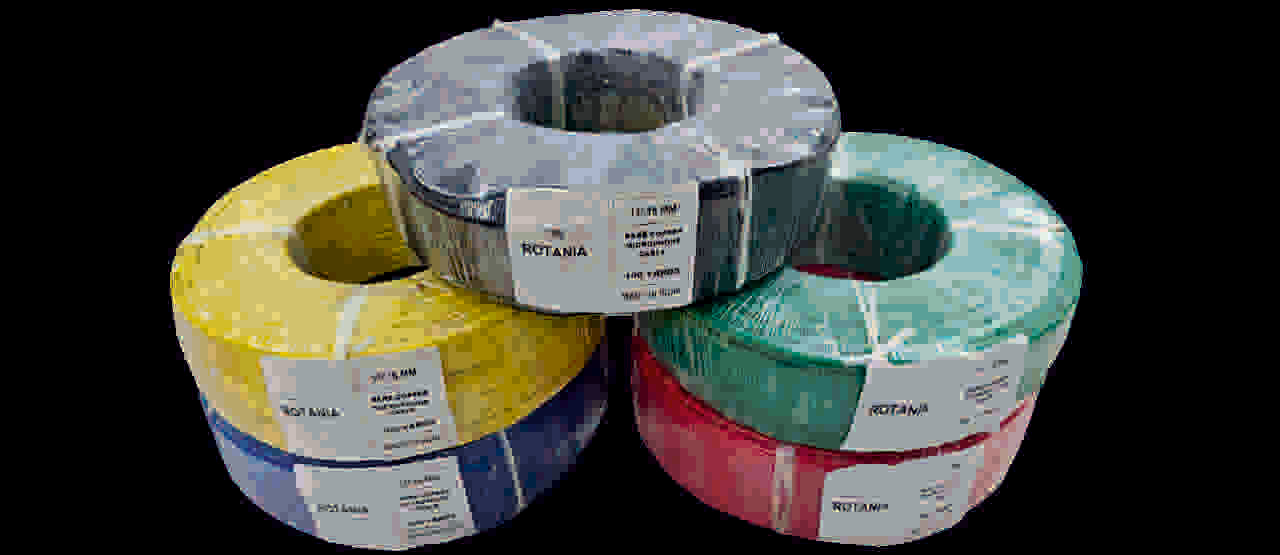

RTN-1116MCR 24 AWG
The lifeline of your live sound setup. The RTN-1116MCR is a premium 24 AWG microphone cable constructed with pure ABC Copper and nylon fiber thread filler to prevent stretching and internal breakage. Its High FlexPVC sheath allows it to lay flat on stages and coil effortlessly. With a generous 100-yard roll, this cable is a must-have for AV installers and touring bands demanding zero noise and total reliability.
Request Pricing & Availability
Application / Note: B2B sales only. Please refer to your regional distributor for localized pricing and availability.
Technical Specifications
| Cable Type | Microphone Cable |
|---|---|
| No. of Strands | 11 Strands |
| Size of Strand | .16 mm |
| No. of Cores | 2 Cores |
| Conductor Type | ABC Copper |
| Insulation Type | HDPE |
| Filler | Nylon Fiber Thread |
| Sheath | PVC High Fle x |
| Overall OD | 6.0 MM + -0.20 MM |
| Operating Voltage | 300 Volts |
| Current Carrying Capacity | 7 Amps. |
| Bending Radius | 3 Inch |
| Length | 100 Yards (92M) |
| N.Weight | 4.2 kg Per Roll |
